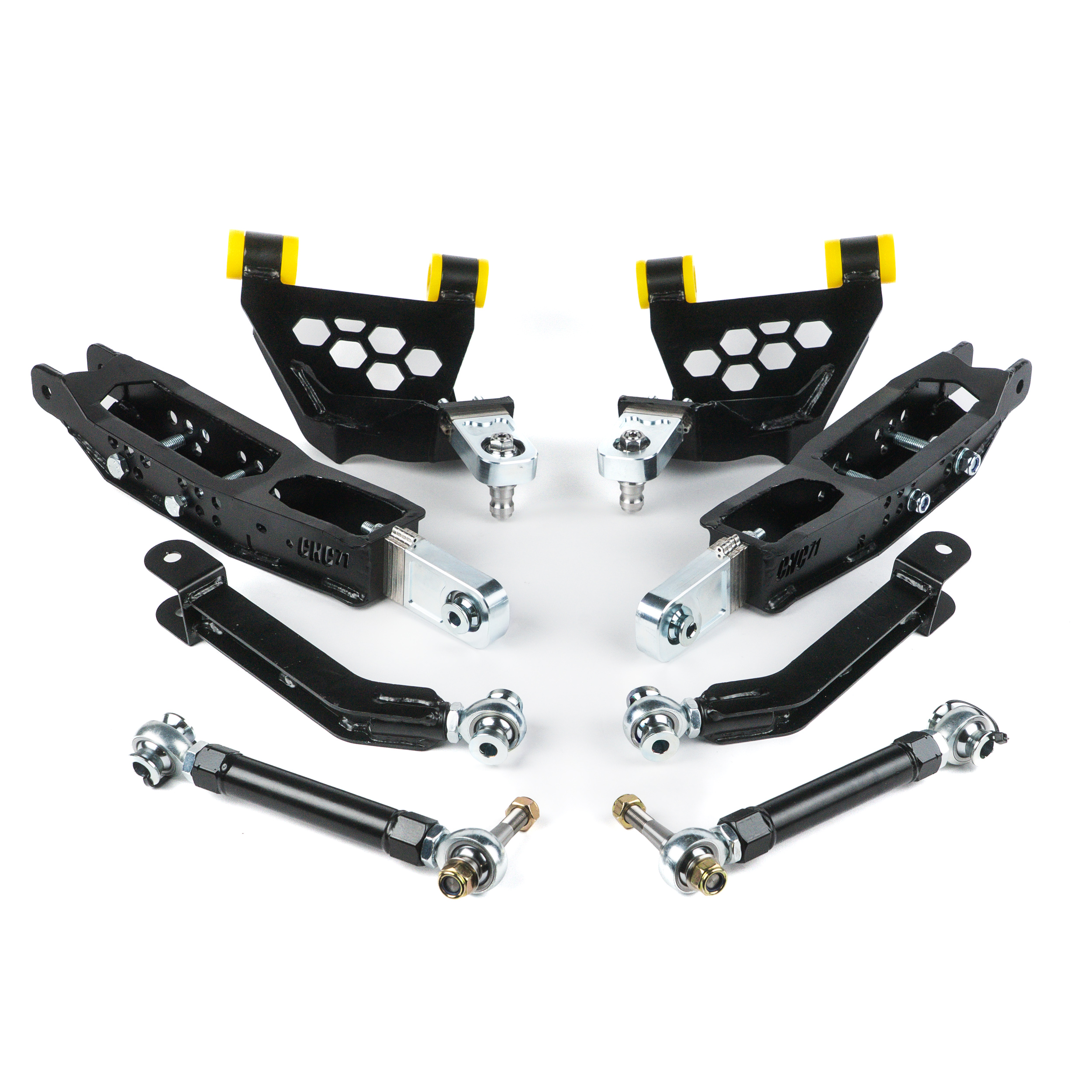

Set of Adjustable Rear Suspension Control Arms Toyota GT86 / Subaru BRZ

A complete set of adjustable rear suspension control arms for the Toyota GT86 / Subaru BRZ from CNC71 Motorsport.

Made of S355 steel, CNC-machined, and welded using MAG and TIG methods.

100% compatible with the stock control arm pin, designed to accommodate polyurethane bushings.

Adjustable via turnbuckles and washers.

Powder-coated in matte black.

Thanks to the adjustable rear suspension control arms designed by CNC71 Motorsport for the Toyota GT86 / Subaru BRZ, it is possible to set up the rear suspension to best suit the driver’s driving style. This is particularly useful when preparing the car for motorsports—such as drifting and time attack. The set of adjustable control arms is also the perfect solution for lowering the car to achieve the desired fit between the wheels and the body—which works perfectly with a lowered suspension setup.

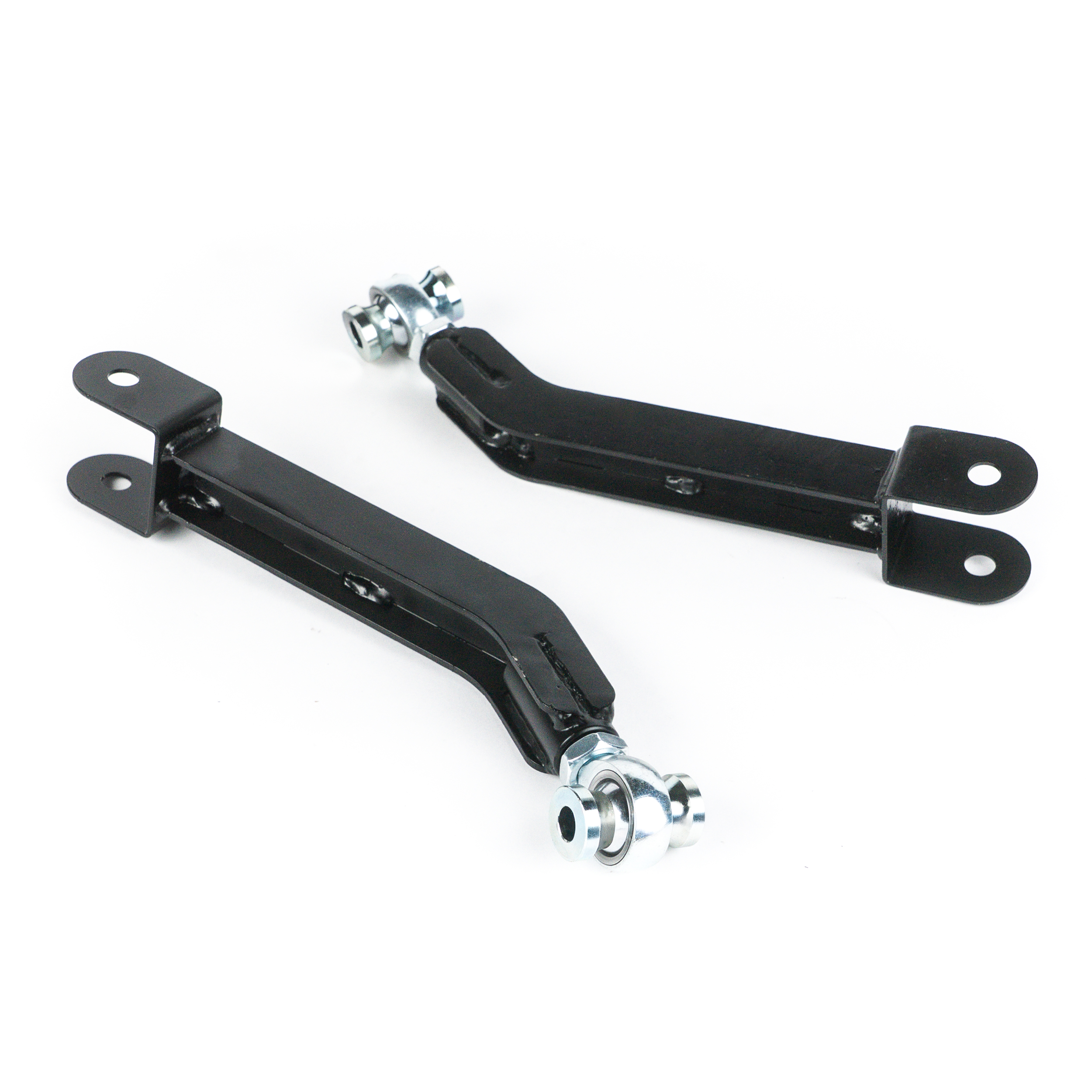

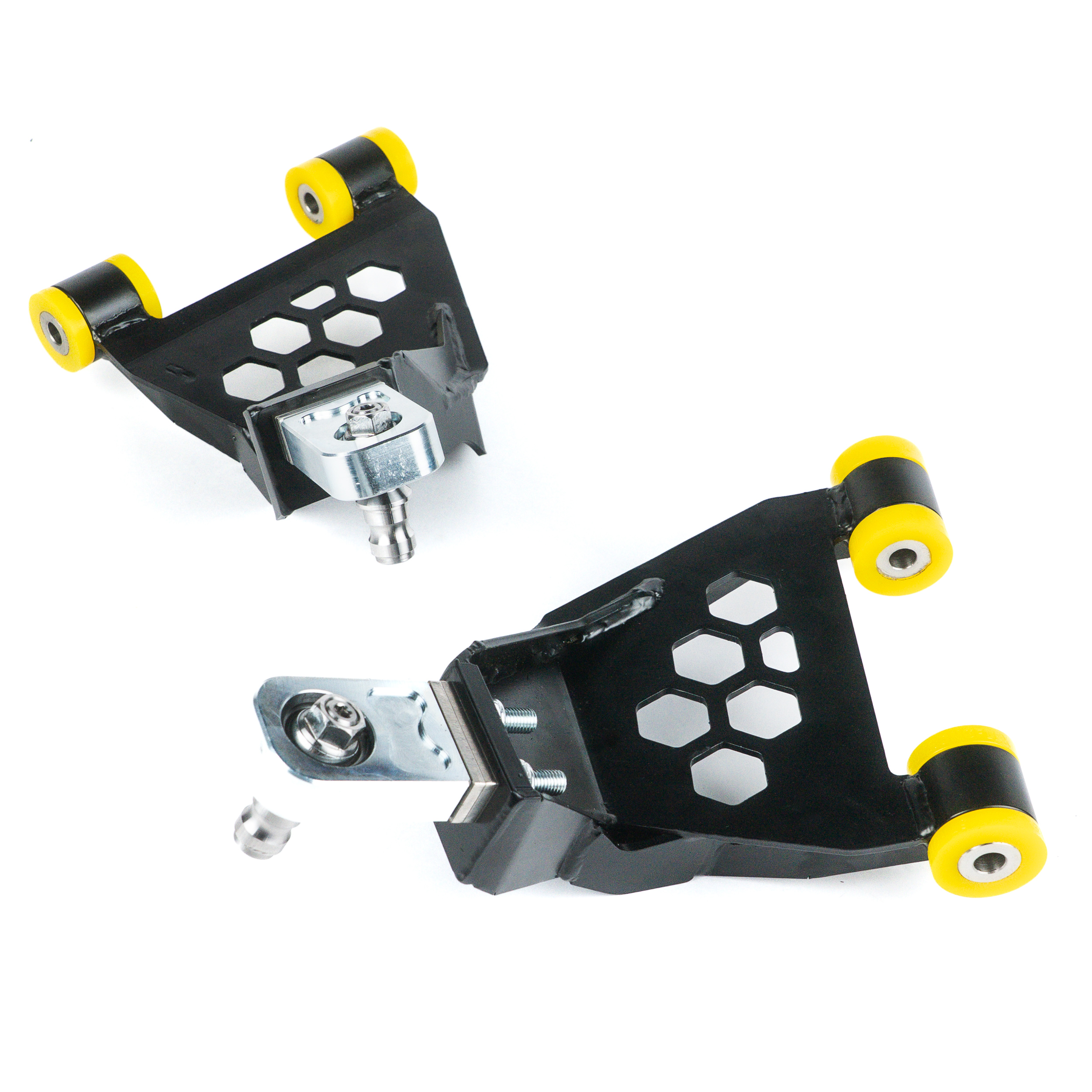

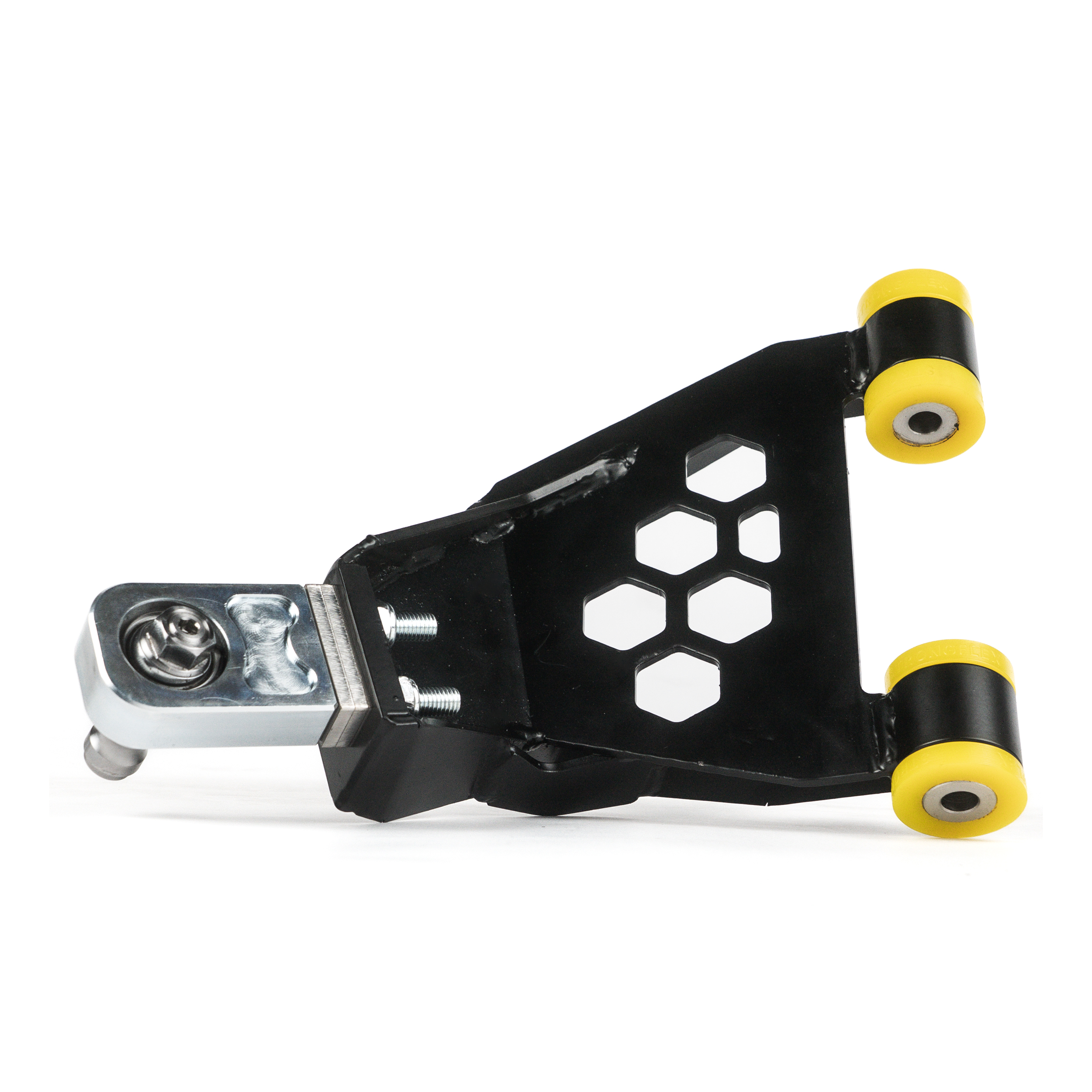

Adjustable Rear Upper Control Arms for Toyota GT86 / Subaru BRZ:

The original rubber bushings have been replaced with motorsport-grade polyurethane bushings with a hardness of 90Sha. The control arm mounting is based on a ball bearing.

With adjustment ranges in both the “+” and “-” directions, the CNC71 Motorsport control arm for the Toyota GT86 / Subaru BRZ allows you to achieve maximum traction on the drive axle. The total adjustment range is approximately 20 mm (260 mm – 280 mm), which, compared to the original control arm (270 mm), allows for shortening it by 10 mm or lengthening it by 10 mm.

The upper control arm primarily allows you to adjust the wheel camber angle. Full adjustability can only be achieved by using the complete set of rear suspension control arms for the Toyota GT86 / Subaru BRZ from CNC71 Motorsport.

The control arm set includes:

Adjustable LEFT rear upper control arm – 1 pc.
Adjustable RIGHT rear upper control arm – 1 pc.
GE20 uniball housing + uniball
Uniball pin
Lock nuts for the uniball
Set of bolts
Special insert for adjusting the control arm length
Polyurethane – set

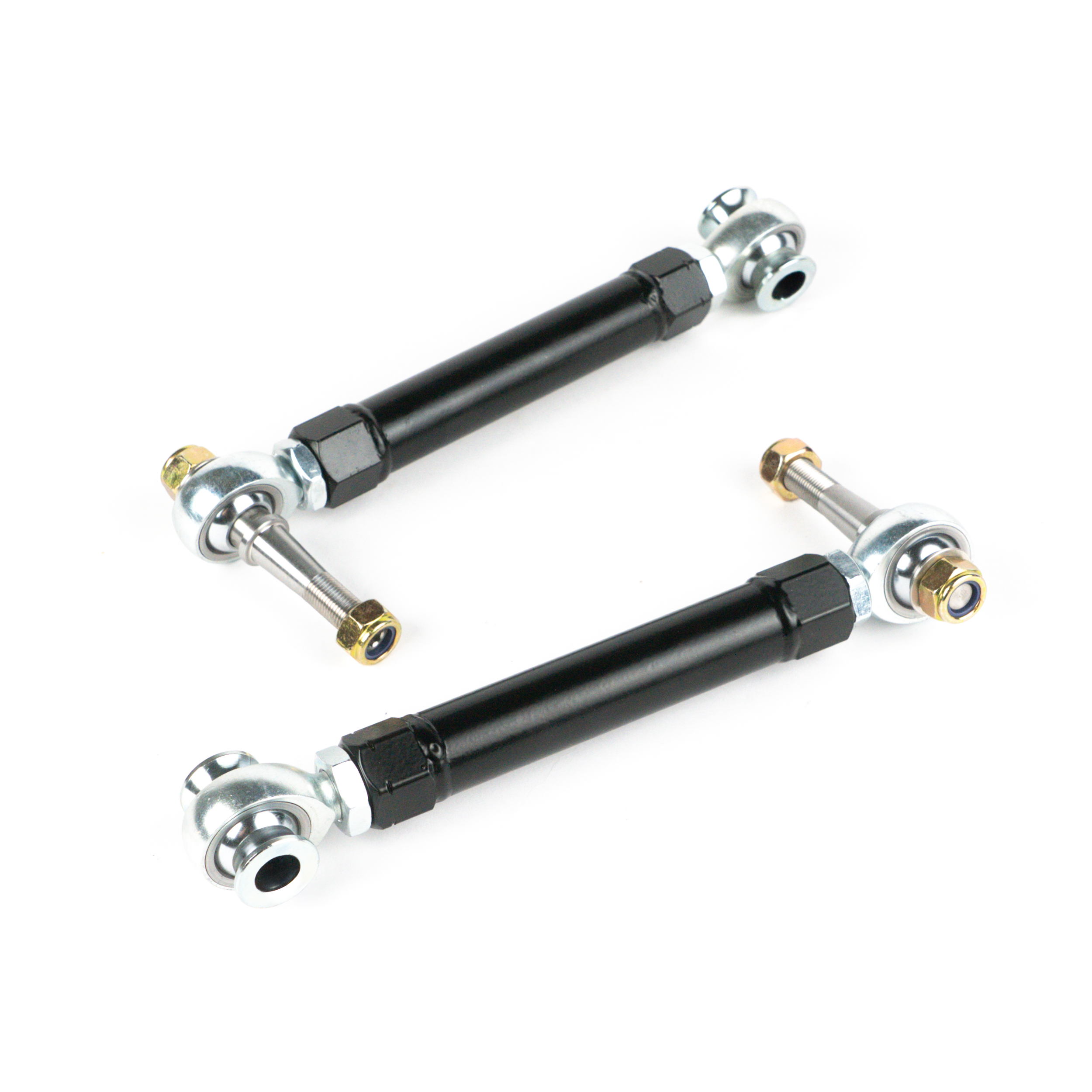

Adjustable rear toe arms for the Toyota GT86 / Subaru BRZ:

The original rubber bushings have been replaced with motorsport-grade polyurethane bushings with a hardness of 90Sha.

With adjustment ranges in both the ‘+’ and ‘-’ directions, the CNC71 Motorsport control arm for the Toyota GT86 / Subaru BRZ allows you to achieve maximum traction on the drive axle. The total adjustment range is approximately 40 mm (233 mm – 273 mm), which, compared to the original control arm (253 mm), allows it to be shortened by 20 mm or lengthened by 20 mm.

The toe arm primarily allows adjustment of the wheel toe and, to a much lesser extent, the camber angle; however, full adjustability can only be achieved by using the complete set of rear suspension control arms for the Toyota GT86 / Subaru BRZ from CNC71 Motorsport.

The toe arm kit comprises:

Adjustable rear toe arm – 2 pcs.
Lock nuts – 2 pcs.
Pins – 2 pcs.

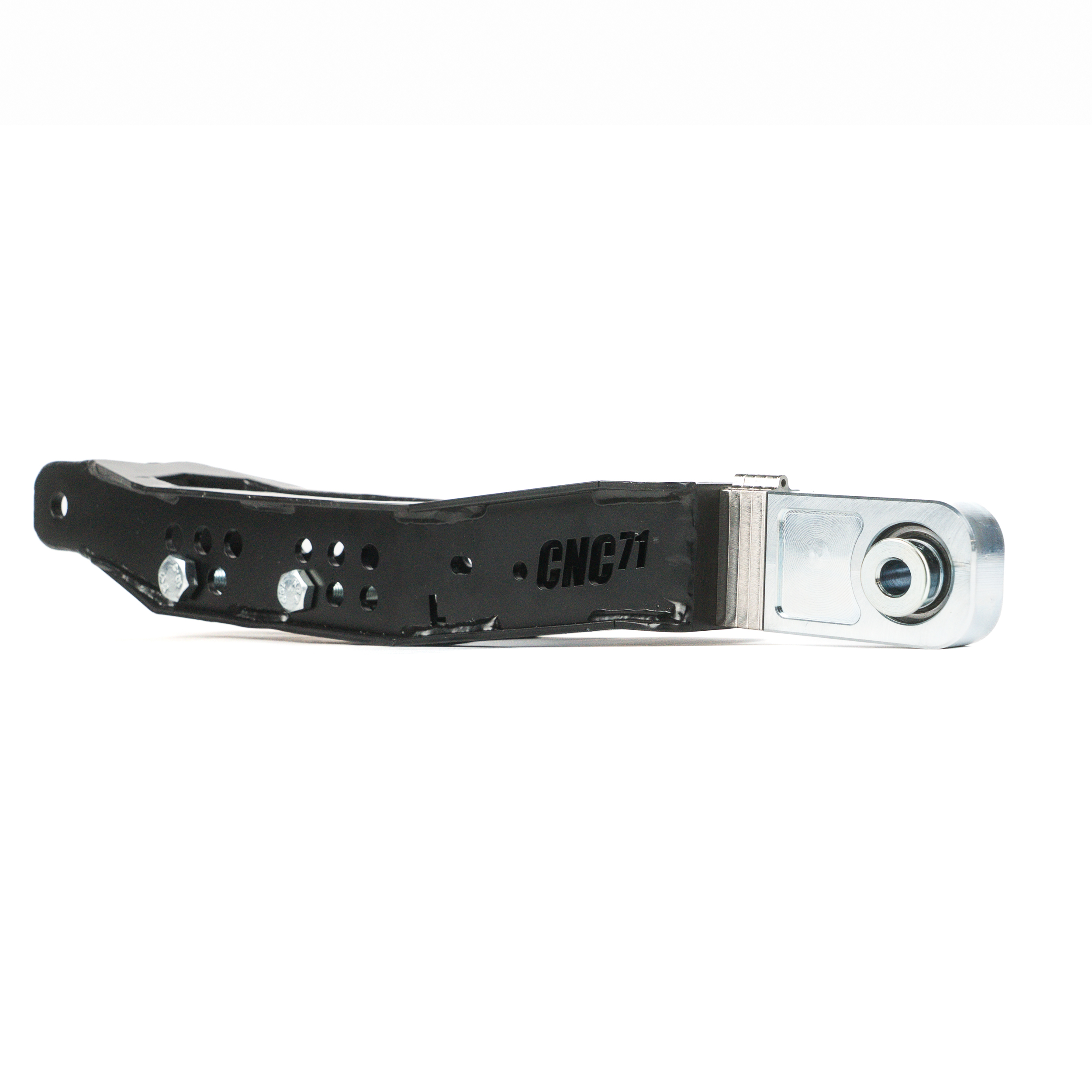

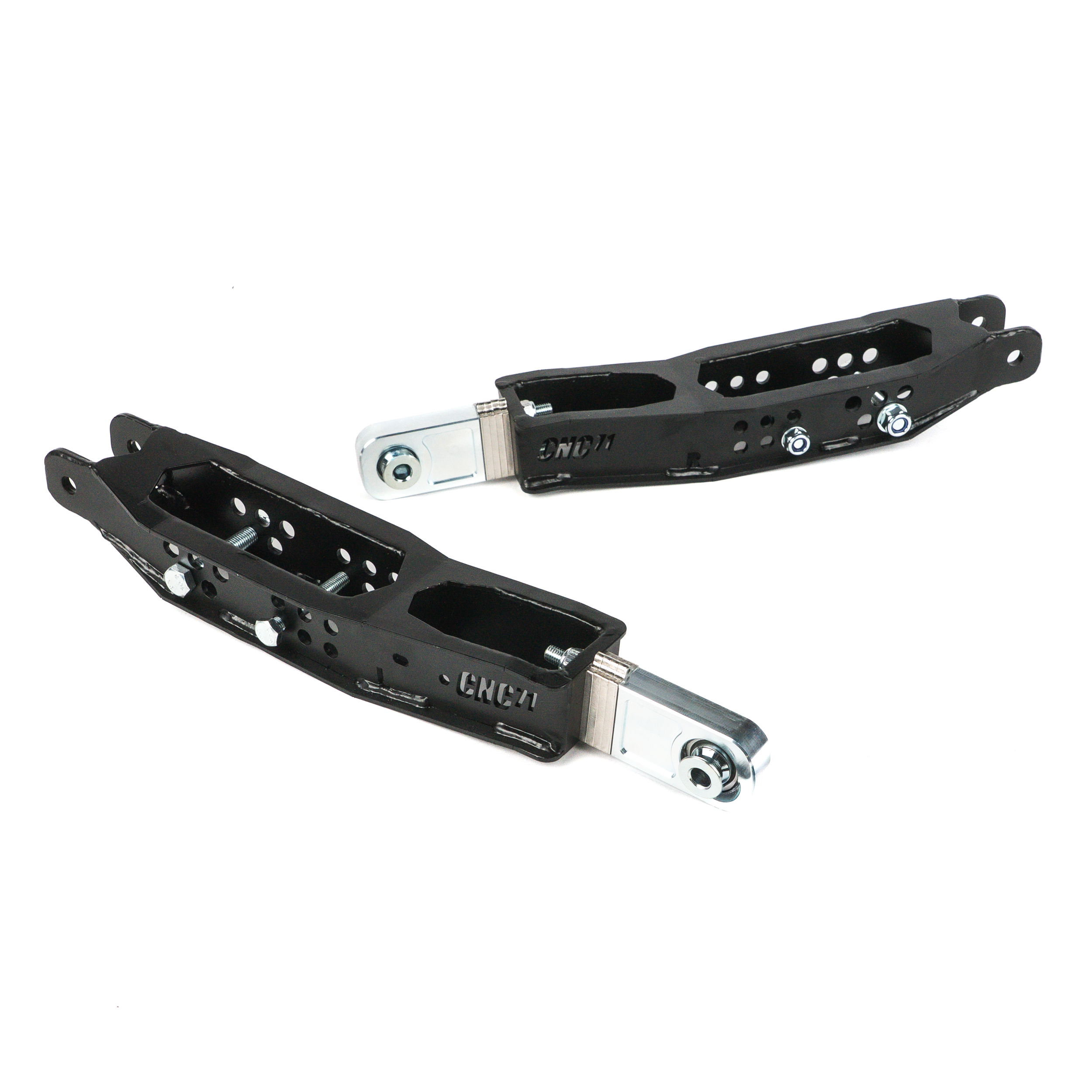

Adjustable rear lower control arms for the Toyota GT86 / Subaru BRZ:

The original rubber bushings have been replaced with motorsport-grade polyurethane bushings with a hardness of 90Sha.

With adjustment ranges in both the ‘+’ and ‘-’ directions, the CNC71 Motorsport control arm for the Toyota GT86 / Subaru BRZ allows you to achieve maximum traction on the drive axle. The total adjustment range is approximately 35 mm (430 mm – 465 mm), which, compared to the original control arm (450 mm), allows it to be shortened by 20 mm or lengthened by 15 mm.

The adjustable lower control arm primarily allows adjustment of the camber angle and, to a minimal extent, the toe-in. Full adjustability can only be achieved by using the complete rear suspension control arm kit for the Toyota GT86 / Subaru BRZ from CNC71 Motorsport.

The lower control arm kit comprises:

Adjustable rear lower control arm – 2 pcs.
Lock nuts – 2 pcs.
Set of bolts
GE20 uniball mounting block with sleeves – 2 pcs.
Adjustment washers

Adjustable rear lower traction arms for the Toyota GT86 / Subaru BRZ:

The original rubber bushings have been replaced with motorsport-spec uniballs.

With its ‘+’ and ‘-’ adjustment ranges, the CNC71 Motorsport lower traction arm for the Toyota GT86 / Subaru BRZ allows you to achieve maximum traction on the drive axle. The total adjustment range is approximately 20 mm (280 mm – 300 mm), which, compared to the original control arm (290 mm), allows it to be shortened by 10 mm or lengthened by 10 mm.

The lower traction arm primarily allows adjustment of wheel toe and camber. Additionally, it modifies the camber and toe adjustment curve. Full adjustability can only be achieved by using the complete set of rear suspension control arms for the Toyota GT86 / Subaru BRZ from CNC71 Motorsport.

The lower traction arm kit comprises:

Adjustable rear lower traction arm – 2 pcs.
Lock nuts – 2 pcs.
Set of bolts
Uniball with sleeves – 2 pcs.
