Hidden hydraulic handbrake Nissan 350Z / Infiniti G35

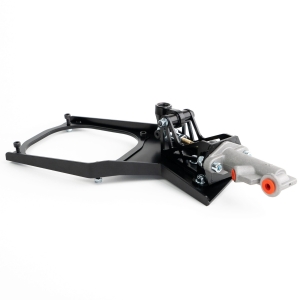

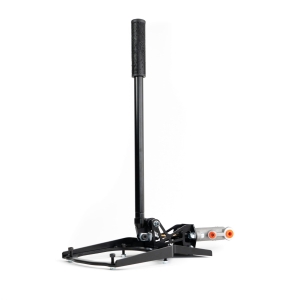

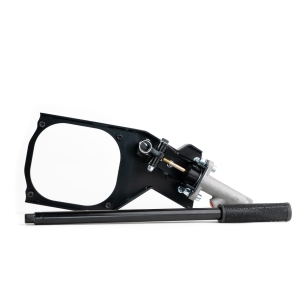

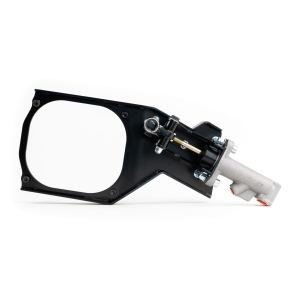

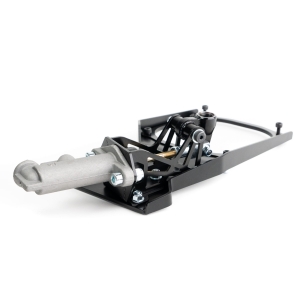

We offer a discreet hydraulic handbrake for Nissan 350Z.

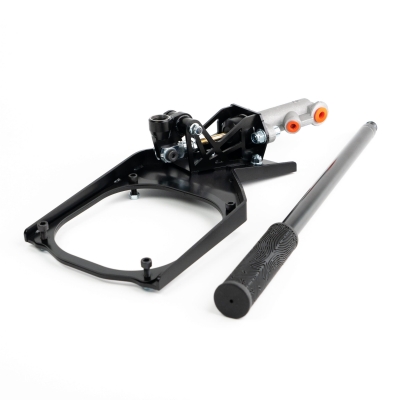

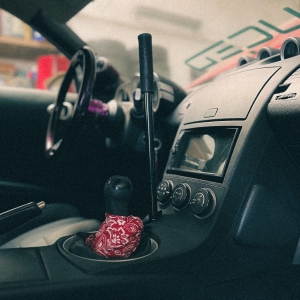

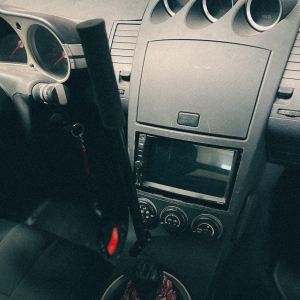

Our product allows you to hide the entire installation under the serial elements of the center console, as well as quick and easy disassembly of the lever (screw-on element), thus avoiding unpleasant questions about the genesis of the added elements in the vehicle.

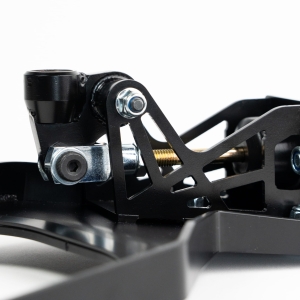

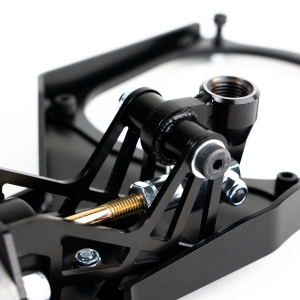

The use of thick, bent steel ensures the rigidity of the structure. No modifications are required that compromise the integrity of the serial body or dashboard components.

Thanks to the added custom rubber overlay of the gearshift lever cover, it is not necessary to get rid of this element, which will avoid noises from the side of the console.

You can choose pump type:

• 0.625 - less force needed to lock the wheels, more lever throw, recommended for "small" Nissan calipers.
• 0.75 - more strength needed to lock the wheels, shorter lever throw, much more direct feel, recommended for "big" Brembo calipers or/and with bigger / grippier rim/tyre spec.

It is also possible to choose the base mounting - both for left-hand drive (LHD) and right-hand drive (RHD) cars.

 All elements of the set are powder coated.

The set includes:

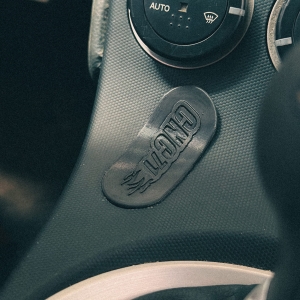

• Prototype plug for the center tunnel made in 3D printing technology.
• Template for cutting the center console (panel with air conditioning module): fit the template with three holes to the knobs on the console, then press lightly from the center of the sheet in the direction of the slot and mark the centers of the holes. The suggested method is to drill two holes with the centers marked with crosses on the template with a 22 drill bit / step drill bit 22 / hole saw 22, and then cut the remaining plastic along the lines of the diagram connecting the holes.

Master Cylinder Threads:

• Inlet Thread: 7/16"
• Outlet Thread: 3/8"
