Garrett G42-1200 Compact Supercore
Regular price:
Regular price:
product unavailable
0
Description

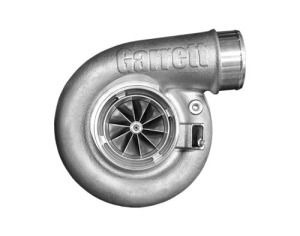

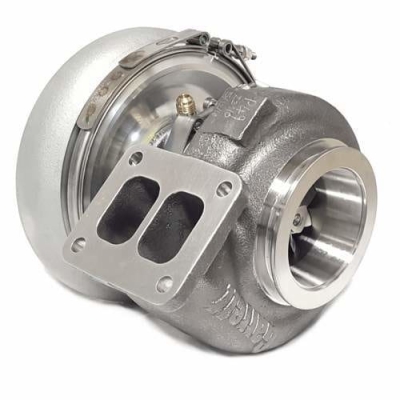

Garrett G42-1200 Compact Supercore
G-Series G42-1200 Compact turbochargers from Garrett are compatible with 2.0L – 7.0L engine displacements and capable of producing up to 1200 horsepower.
G42-1200 Compact Series turbochargers are smaller and outflow all comparable products on the market. Improved durability with better materials can withstand higher temperatures and better safety margins.
The Garrett G-Series G42-1200 Compact turbochargers deliver more power and durability in a smaller frame than ever before.
Horsepower: 475 - 1200HP
Displacement: 2.0 - 7.0L
Compressor
Exducer: 91mm
Inducer: 73mm
Trim: 65
Material: Forged Billet Aluminum Alloy
A/R: 0.90
Max Flow: 112 lb/min
Max Recommended Speed: 118000 RPM
Compressor Housing Connections
Inlet: 4.0″ Hose Coupler
Outlet: 3.0" Hose Coupler
Turbine
Exducer: 75mm
Inducer: 82mm
Trim: 84
Material: Mar-M
A/R: 1.01
Max Temp: 1050C / 1922F
Wastegate: No
Divided: No
