Garrett G30 900 A/R 1,01 Wastegate
Regular price:
Regular price:
product unavailable
0
Description

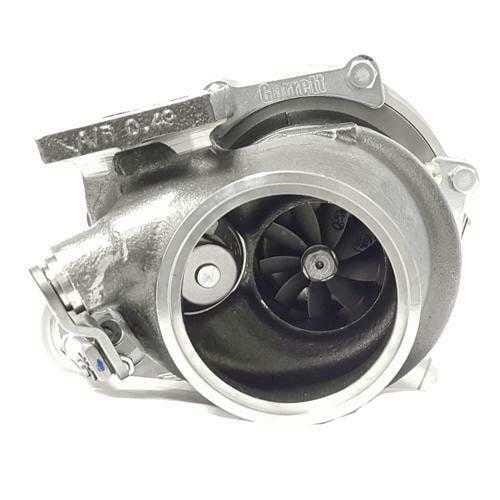

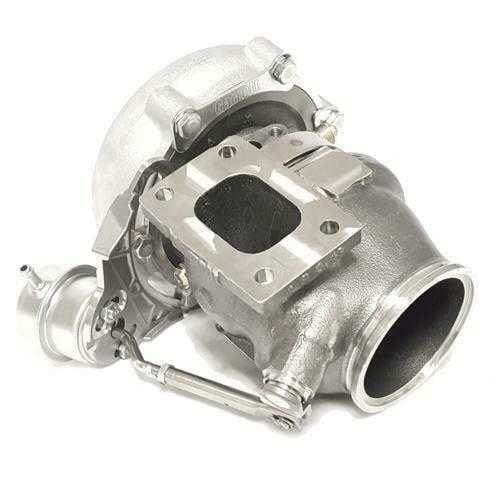

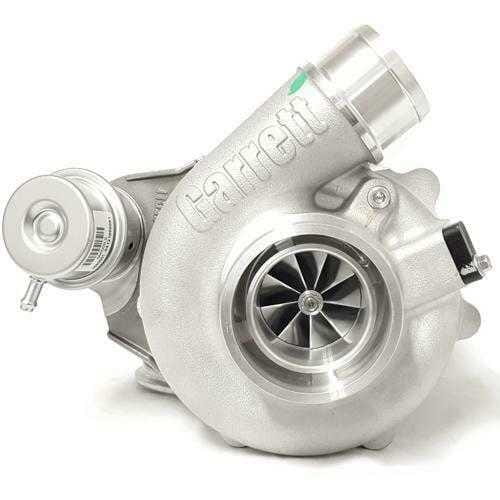

Garrett G30 900 A/R 1,01 Wastegate
G-Series G30-900 turbochargers from Garrett are compatible with 2.0L – 3.5L engine displacements and capable of producing up to 900 horsepower.
G30-900 Series turbochargers are smaller and outflow all comparable products on the market. Improved durability with better materials can withstand higher temperatures and better safety margins.
The Garrett G-Series G30-900 turbochargers deliver more power and durability in a smaller frame than ever before.
Horsepower: 550 - 900HP
Displacement: 2.0 - 3.5L
Compressor
Exducer: 76mm
Inducer: 62mm
Trim: 65
Material: Forged Billet Aluminum Alloy
A/R: 0.72
Max Flow: 82 lb/min
Max Recommended Speed: 145000 RPM
Compressor Housing Connections
Inlet: 3.0″ Hose Coupler
Outlet: 2.0″ Hose Coupler
Turbine
Exducer: 55mm
Inducer: 60mm
Trim: 84
Material: Mar-M
A/R: 1.01
Max Temp: 1050C / 1922F
Wastegate: Yes 0.5 bar
Divided: No
Turbine Housing Connections
Inlet: 3.0" V-band
Outlet: 3.5" V-band
