Camber plates Toyota GT86 / Subaru BRZ

Adjustable Camber Plates for Toyota GT86 / Subaru BRZ – Extended Adjustment Range

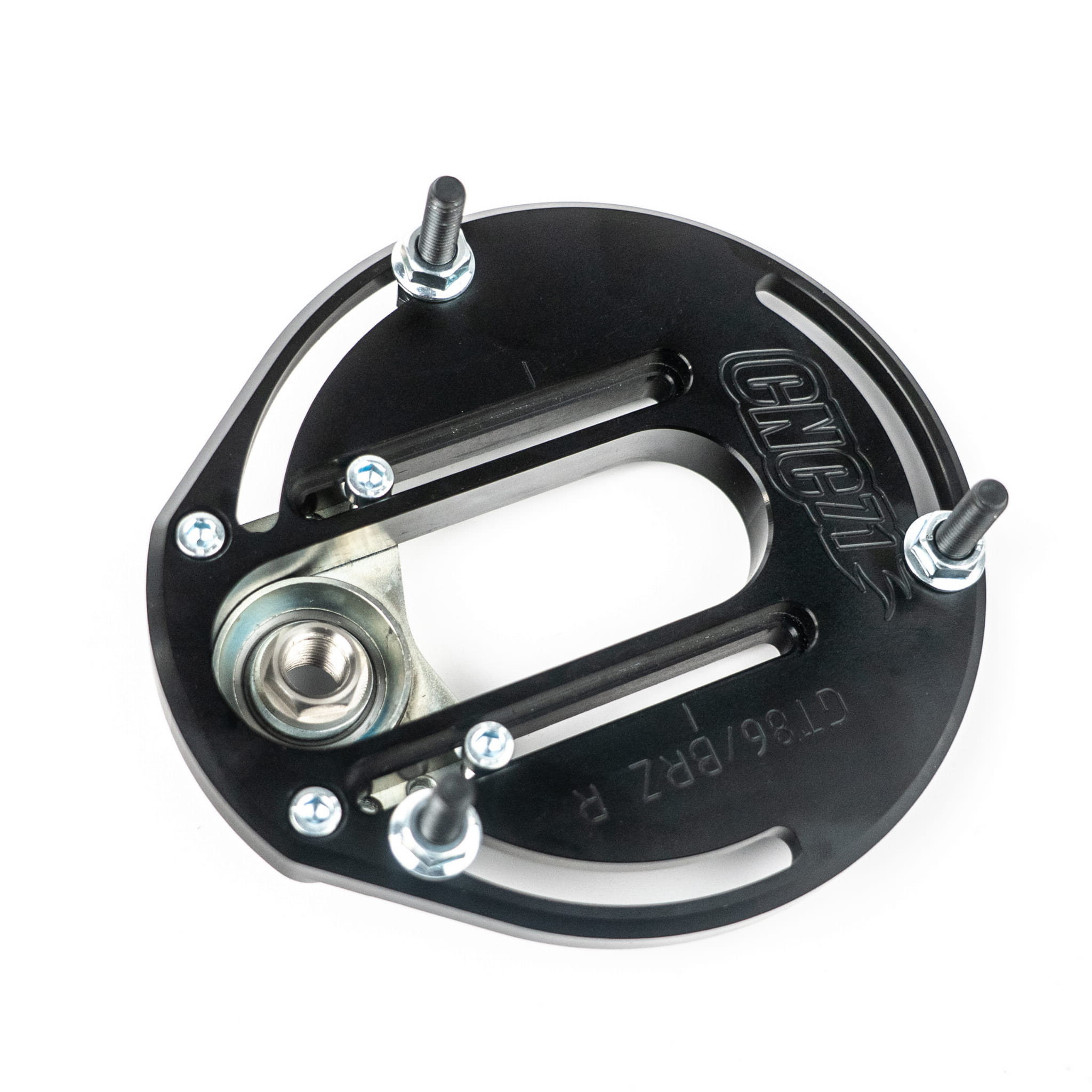

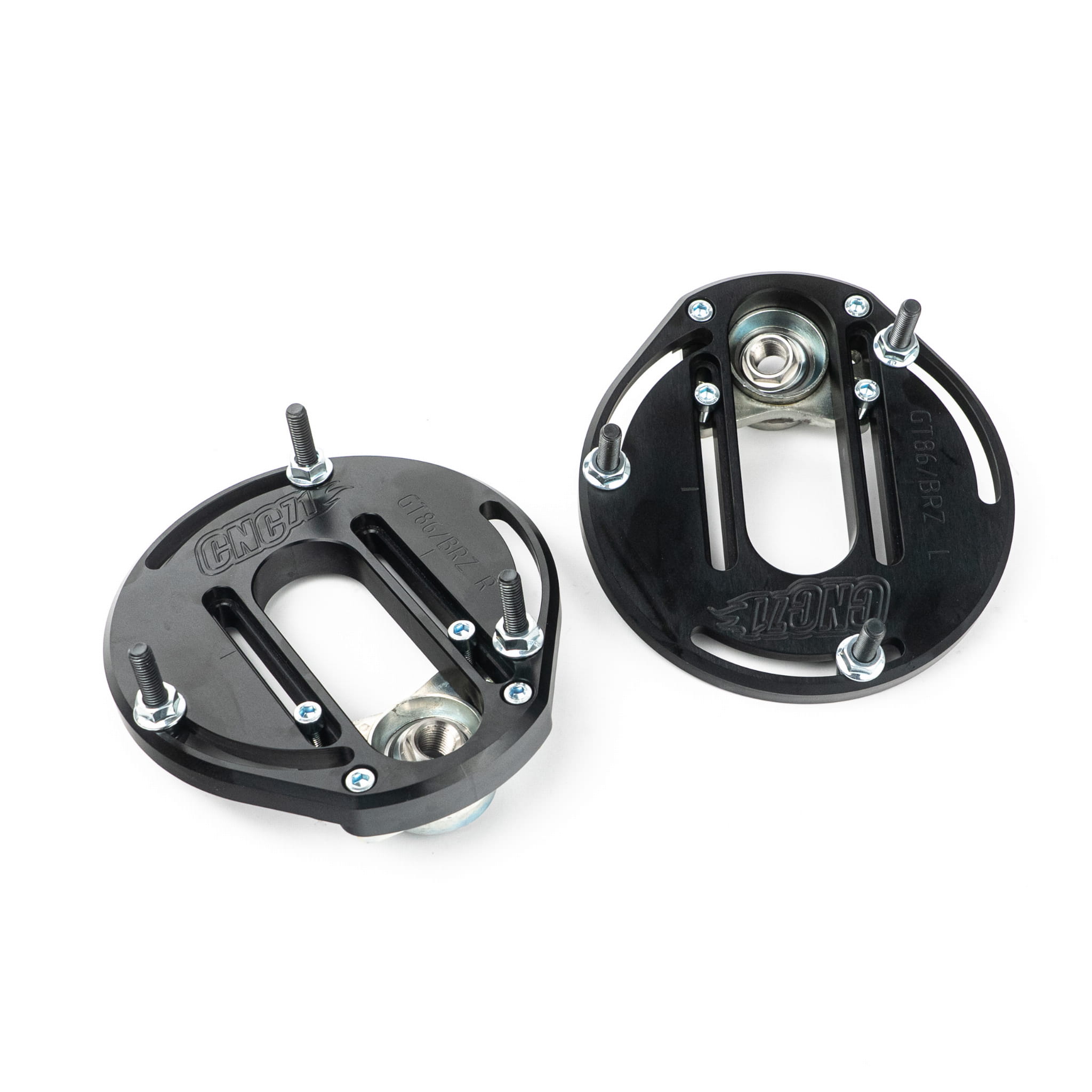

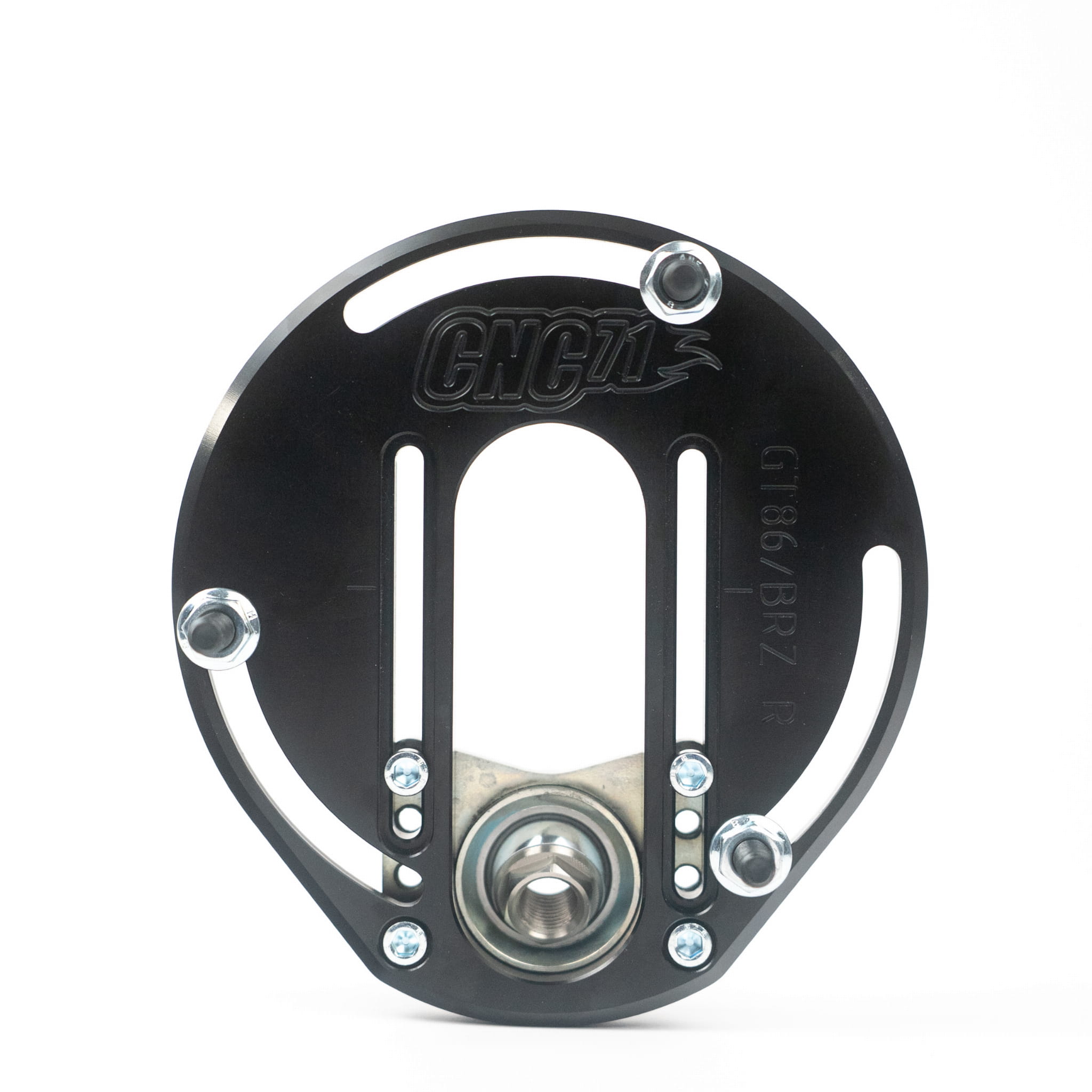

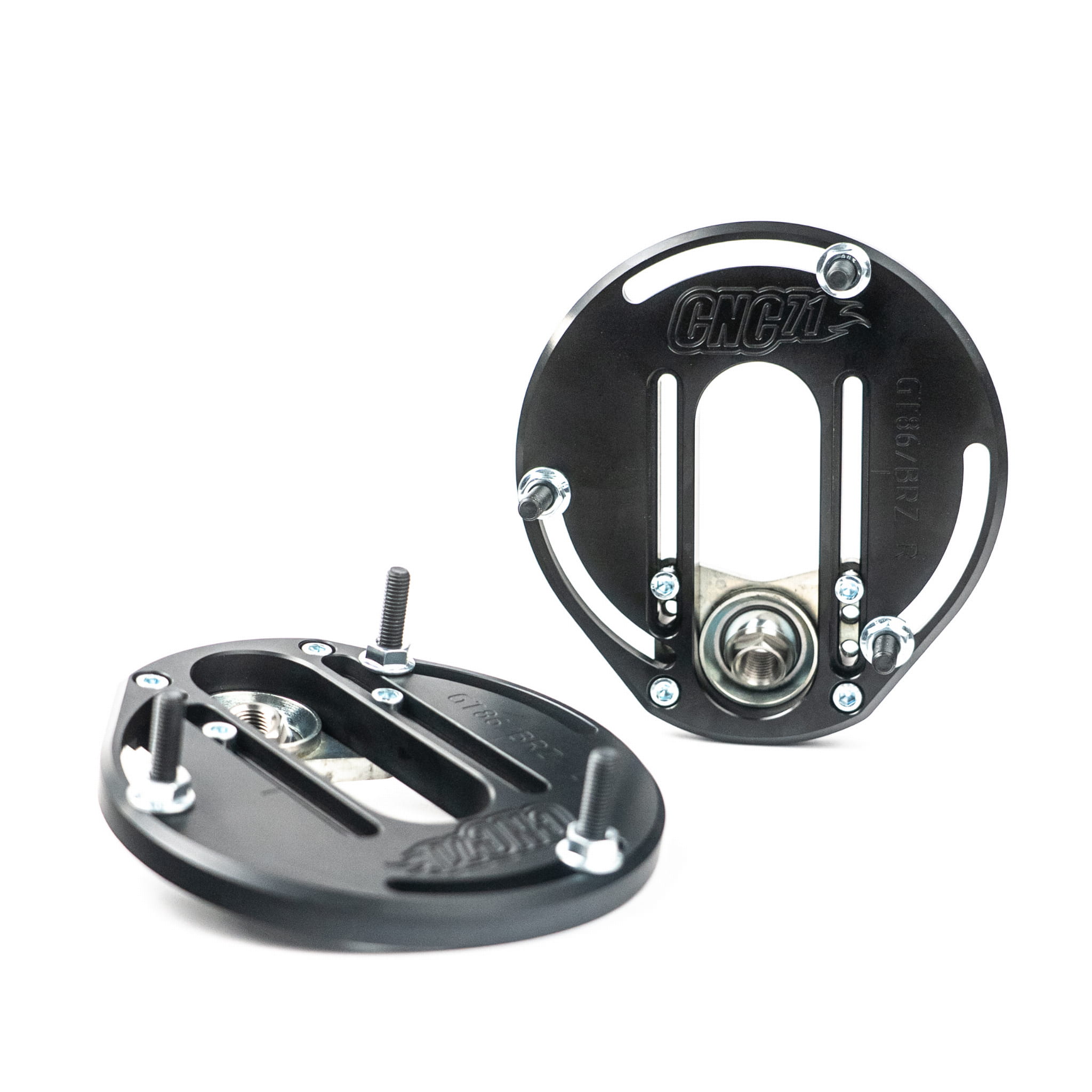

High-range adjustable camber plates for GT86 / BRZ, designed and manufactured by CNC71 Motorsport. They allow precise adjustment of the upper strut mount position without any modification to the strut tower.

Adjustment range includes:

• strut position offset from +63 mm to –15 mm

• rotational adjustment up to 58°

This results in:

• camber adjustment from –2.1° to +5°

• caster adjustment from –3° to +2°

Product Features

• machined from 7075 aircraft-grade aluminum, 17 mm thick

• maintenance-free GE20UK bearings ensure reliable operation under demanding conditions

• serrated locking nuts prevent loosening from the strut tower

• simple and well-engineered design for easy installation and adjustment

• smooth and precise adjustment

• no vehicle modification required

• clean, attractive design

What’s Included

The kit includes stainless steel spacers:

• lower spacer – its extended length prevents contact with the spring perch at large strut angles

• upper spacer – acts as a locking nut, eliminating issues with insufficient threaded engagement

Also included are nuts and sleeves compatible with suspension thread sizes:

• M12 × 1.25

• M12 × 1.5

• M14 × 1.5

Additional Information

• price is for a complete set (2 pieces)

• fully CNC-machined

• excellent corrosion resistance ensured by:

  • stainless steel components

  • zinc-coated steel parts

  • anodized aluminum elements

The clean and minimalist design integrates perfectly into any engine bay.
